Description

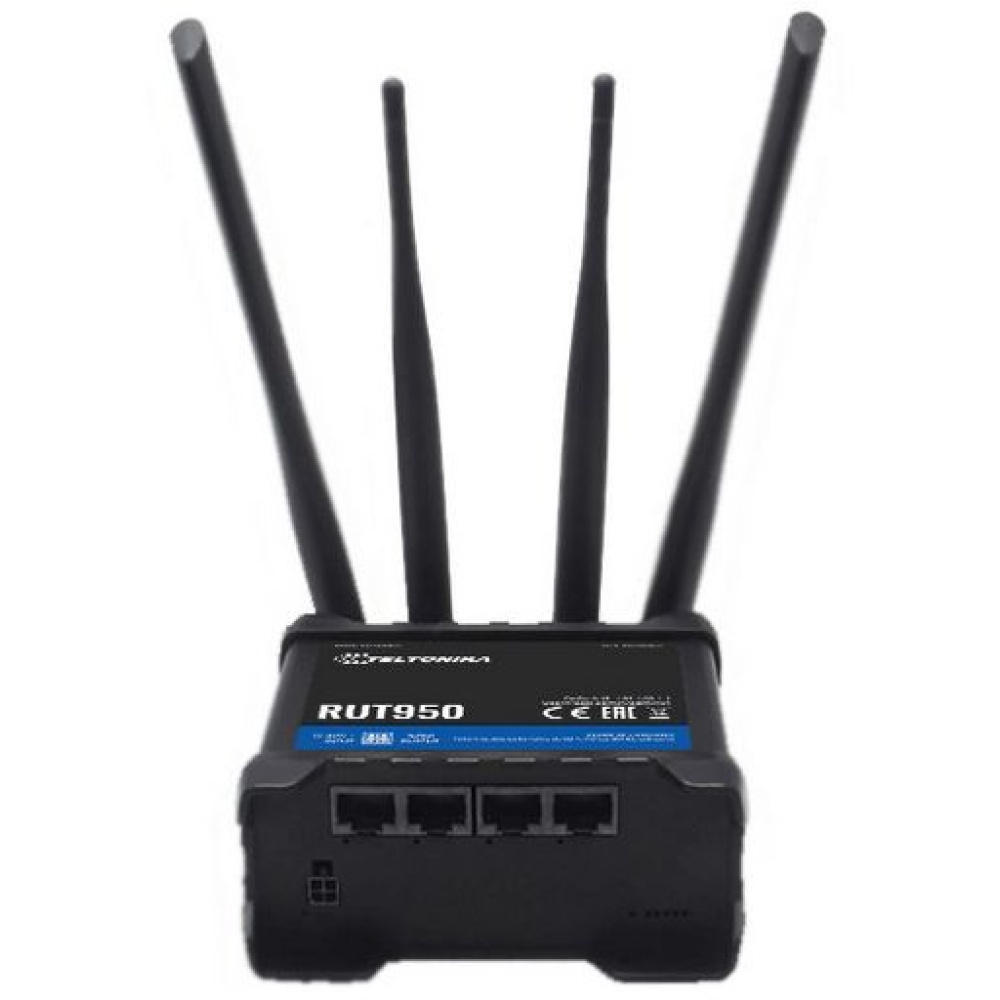

Teltonika’s RUT950 commercial grade 4G modem/router
High reliability, secure mobile broadband router for professional applications. The RUT9xx are well suited for mission-critical cellular communications and Home and SoHo installations.
RUT950 is equipped with connectivity redundancy through dual SIM failover and WAN/Lan Internet port.
External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
Australian Carrier Compatibility
Telstra, Optus and Vodafone 3G – Cat4 4G FDD up to 150Mpps DL.
Optus 4G – All FDD bands (does not suit the Optus TDD 2300MHz band 40)
Telstra 4G – All bands
Vodafone 4G – All bands
Standard package contains
|
Specifications
TECHNOLOGY
RUT950 7O1290 – Australia/Asia/Oceana version
- 4G – FDD 700(B28) 850(B5) 900(B8) 1800(B3) 2100(B1) 2700(B7) MHz
- 3G – 850(B5) 900(B8) 1900(B2) & 2100(B1) MHZ
- LAN, WAN and Dual SIM 4G Failover
- WiFi – Up to 300 Mbps
- Power over Ethernet
- SMS remote commands
HARDWARE
- 2x SIM Card (Dual-SIM)
- 3x LAN 10/100Mbps Ethernet ports
- 1x WAN 10/100Mbps Ethernet ports
- IEEE 802.11b/g/n WiFi standards
- Durable aluminum housing
- 2 pin industrial DC power socket
- Power over Ethernet (not compliant with IEEE 802.3af – 2003)
- Input voltage range – 9-30 VDC
(PoE and Power Pack) - MBB antenna connector – 2 x SMA
- Wireless N antenna connector – 2 x RP-SMA
- Operating temperature range – -45ºC to 80º C
- Storage temperature range – -45º to 80º C
- Power consumption – < 7W
- Mounting options – DIN Rail, Wall
- LED indication – 1x bi-color connection status, 5x connection strength, 4x LAN status, 1x Power
FIRMWARE
- Remote configuration over SMS
- Bridge mode
- Automatic and manual operator selection
- Static routes
- PPPoE
- NTP
- Wireless Hotspot
- Wireless Client
- Wireless AP
- Ping reboot
- Periodic reboot
- Real-time graphs
- Backup WAN
- Mobile Traffic counter
- Connection status overview bar
- Configuration backup/restore
- VRRP
- IPsec
- GRE Tunnel
- OpenVPN
- PPTP
- L2TP
- SNMP
- SNMP Trap
- Send/receive SMS
- Status via SMS
- SMS reboot
- Mobile enable/disable via SMS
- Wireless enable/disable via SMS
- OpenVPN enable/disable via SMS
- Web Filter
- Mobile on Demand
- Mobile Data Limit
- Configuration Profiles
- Event logging
- QoS
- Restore Point
- Call Utilities
- SIM switch
- FOTA (Firmware Over The Air)
- Event reporting (via Email/SMS)
- Integrated speed test
- Network Scanner with Topology display
- Disable Roaming
- SMS gateway
- OSPF
- Access control safety
- SIM Idle protection
- VLAN
- CLI
- Firewall
- IP/MAC filter
- TR-069
- DHCP server
- Dynamic DNS
- RMS support
