Description

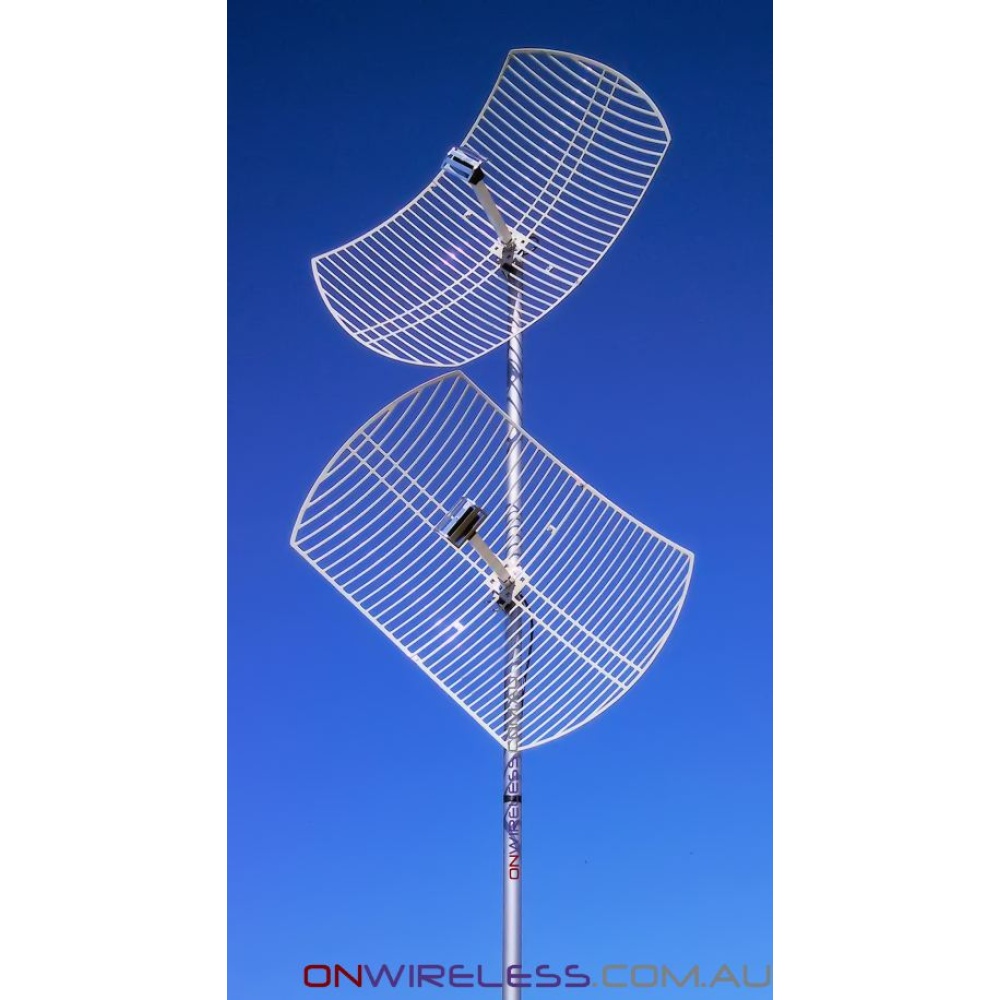

20dbi Dual MIMO Parabolic Grid Antenna for
4G 1800 MHz Mobile Broadband
NOTE !! 4G 1800MHz only NOT suitable for 3G or nextG
Connectivity
Benefits Who uses these antennas.
USB 4G Routers, Modems with MIMO enabled 4G towers.
For Fixed Wireless, Outdoor and Semi-Mobile installs.
Suitable for 4G 1800MHz as used by Telstra & Optus.
Homes, Offices, Mines, Dongas and Geo-technical contractors, but rural and metropolitan.
Farms and Stations too far from Mobile phone towers.
Correctly installed, this antenna may turn an unreliable 4G internet connection into a fast broadband and quality VoIP service.
Greatly Improves 4G Wireless Internet and Mobile Phone service in rural and marginal signal areas.
This antenna suits 4G services on 1800MHz. At this frequency, much signal can be absorbed by rain, fog, and vegetation that is in the direct line from the tower to your location. Also, the signal path needs to be line-of-sight. This doesnt mean you need to be able to see the cell tower, it just means there must be no significant buildings, hills or mountains blocking the direct path. To get the best 4G connectivity youll benefit form the greatly increased Signal Strength and Signal-to-Noise ratio these directional antennas will provide.
21dBi 4G LTE1800 Grid antenna radiation pattern21dBi 4G LTE1800 Grid antenna radiation pattern
Highly Directional
16dBi 4G LTE1800 Yagi antenna dimensions
When purchased with coax cable, final connection is
FME female to suit all Patch cables and SMA male most modems
Patch Lead (if required) is not included, sold separately
Supplied with FME-Female and SMA-Male (adapter) final connection.
Patch Leads (if required) not included sold separately
Electrical Data
Frequency: 1710-1880 MHz
Gain: 20 dBi
VSWR: <1.5:1 Polarization: Vertical, Horizontal, ±45° Slant Horizontal Beamwidth: 12° Vertical Beamwidth: 18° Nominal Impedance: 50 Ohms F/B Ratio: >30 dB
Lightning Protection: DC Ground
Mechanical Data
Connector: N-female
Dimensions: 1000 x 600 x 480 mm
Weight: 3.5kg
Cable Length: 300mm
Reflector Material: Aluminum Alloy
Antenna Material: Aluminum Alloy
Mounting Method: Mast
Mast Diameter: Ø40-Ø70mm U-Bolt Clamp
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65°C
Type: Directional Parabolic Grid
Single 4G LTE grid sntenna kit
21dbi grid antenna for 4G 1800MHz
